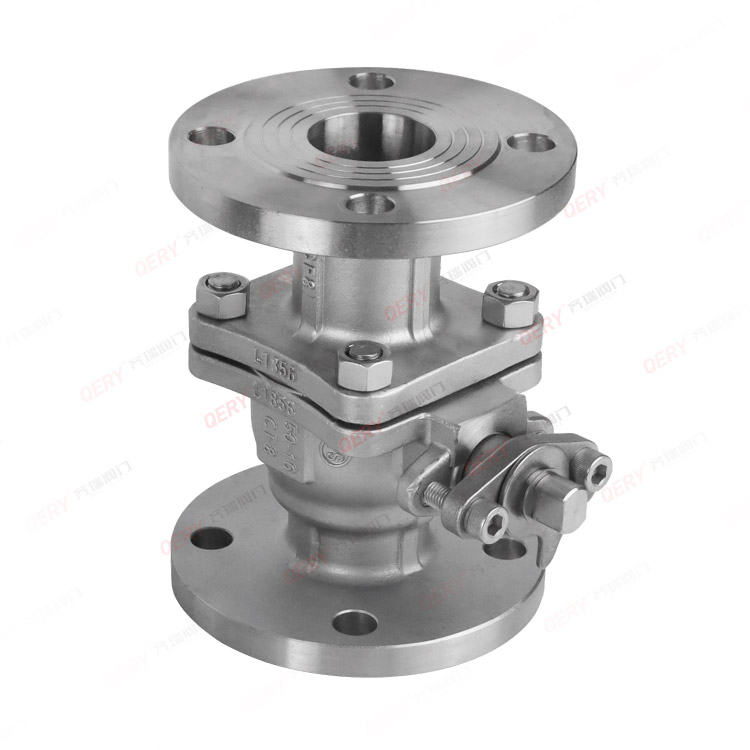

Forged steel ball valve with flange

summary:

Ball valve, the opening and closing element (ball) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid regulation and control, among which the hard sealed V-shaped ball valve has strong shear force between its V-shaped core and the metal valve seat of the welded hard alloy, especially suitable for media containing fibers, small solid particles, etc.

◆ nominal diameter: 10mm~1000mm and 1/2 "~60"

◆ Working pressure: 1.0MPa~16.0MPa/150Lb~1500Lb/10K~160K

◆ Working temperature: -196 ℃~700 ℃

◆ Adopting standards: GB, DIN, API, ANSI, JIS, BS, etc

◆ Product Material: WCB、A105、LCB、LF2、WC6、F11、WC9、CF8、F304、CF8M、F316、CF3、F304L、CF3M、F316L、CF8C、4A、F51、5A、F53、Inconel、Monel、2205、2507、904L、 Copper alloy, titanium alloy, Hastelloy alloy, nickel alloy, etc.
